Material
Carbon steel.
Version
Black oxidized.
Show more
Show less

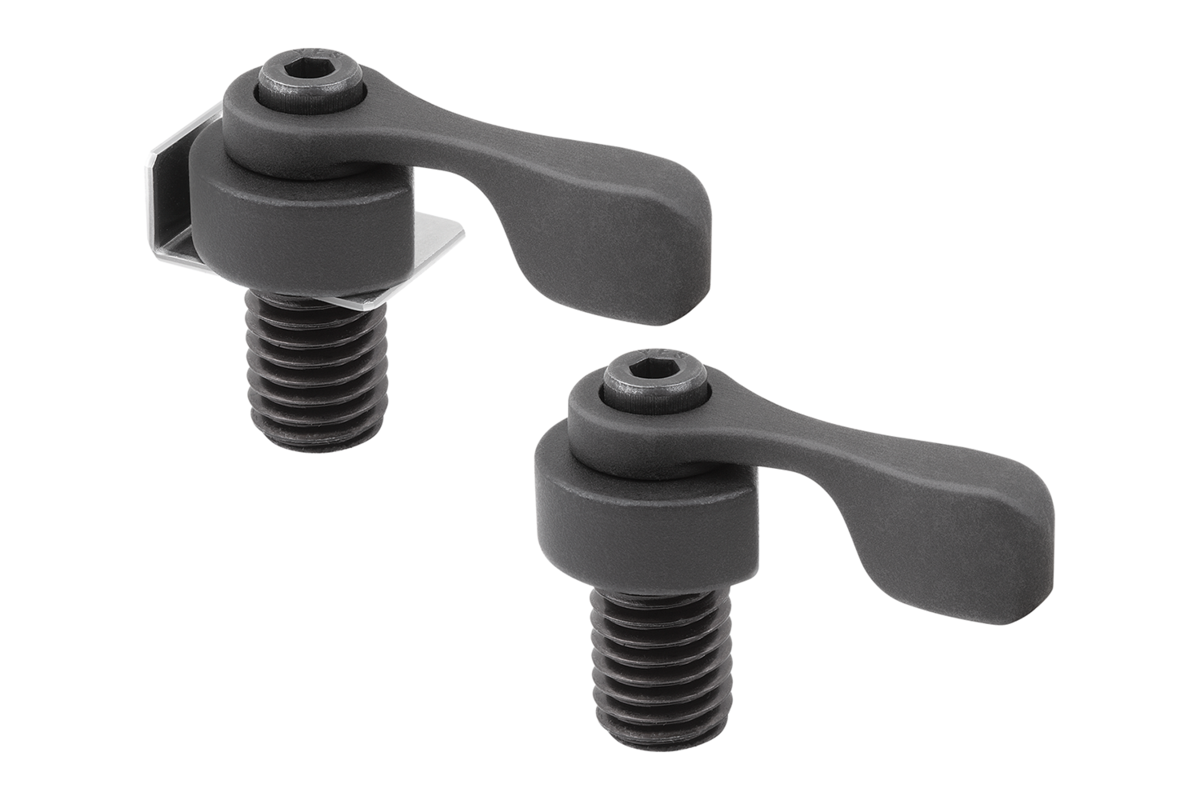

Cam clamps, steel with tension lever, Style A
from
$42.04
plus sales tax
plus shipping costs
Cam clamps, steel with tension lever, Style B
from
$51.31
plus sales tax
plus shipping costs
Description
Material
Carbon steel.
Version
Black oxidized.
Note

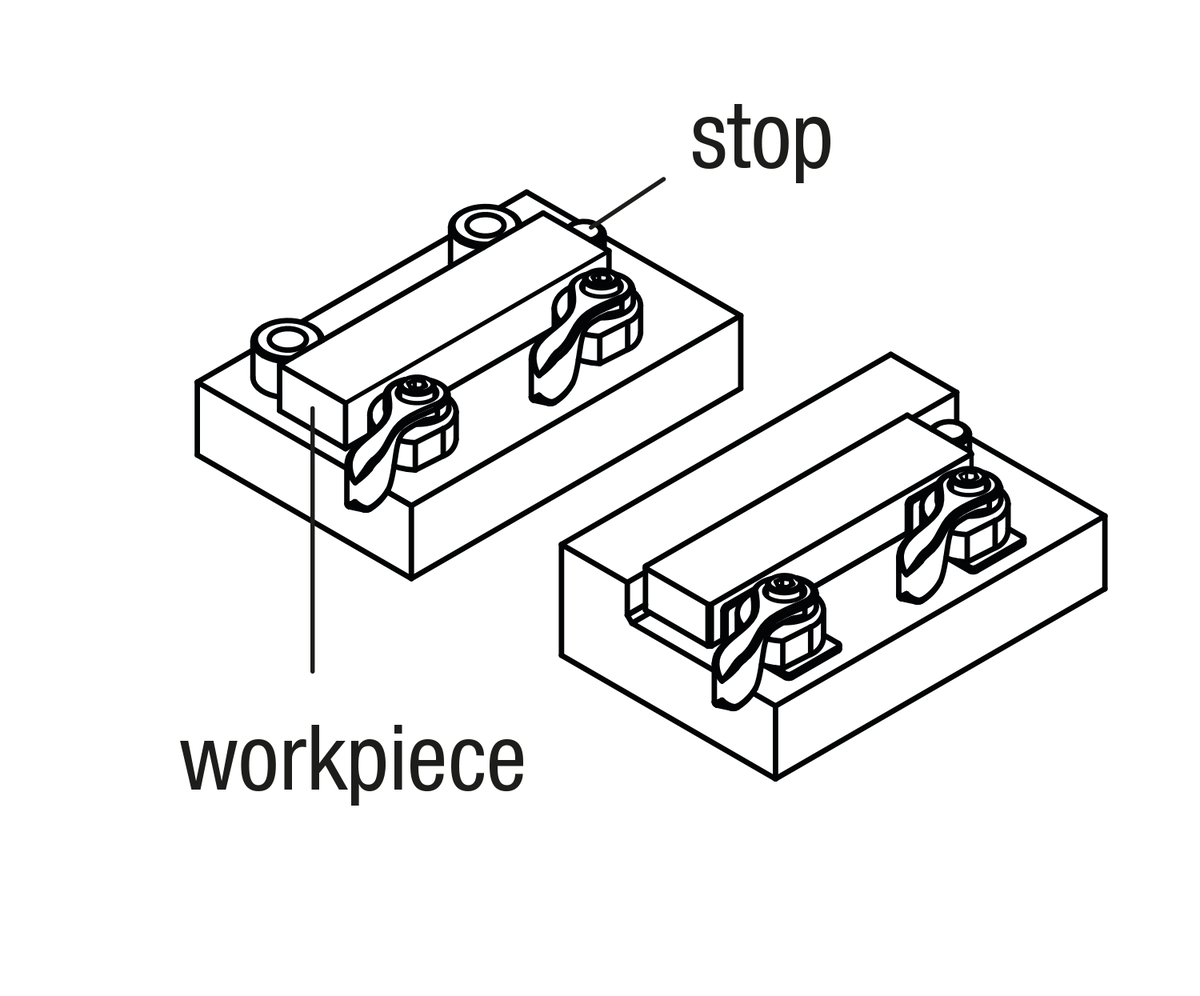

Dimension A refers to the distance from the workpiece to screw center (cam screw).
Style B with clamp plate is recommended to minimize scratches on the workpiece.
Due to its hexagonal profile, the tension lever can be mounted in 60° increments and can thus be aligned according to the user's needs.
Style B with clamp plate is recommended to minimize scratches on the workpiece.
Due to its hexagonal profile, the tension lever can be mounted in 60° increments and can thus be aligned according to the user's needs.
Advantages
- Compact design
- Rapid and easy clamping of the component
- Tool-free clamping with tension lever
- Rapid and easy clamping of the component
- Tool-free clamping with tension lever

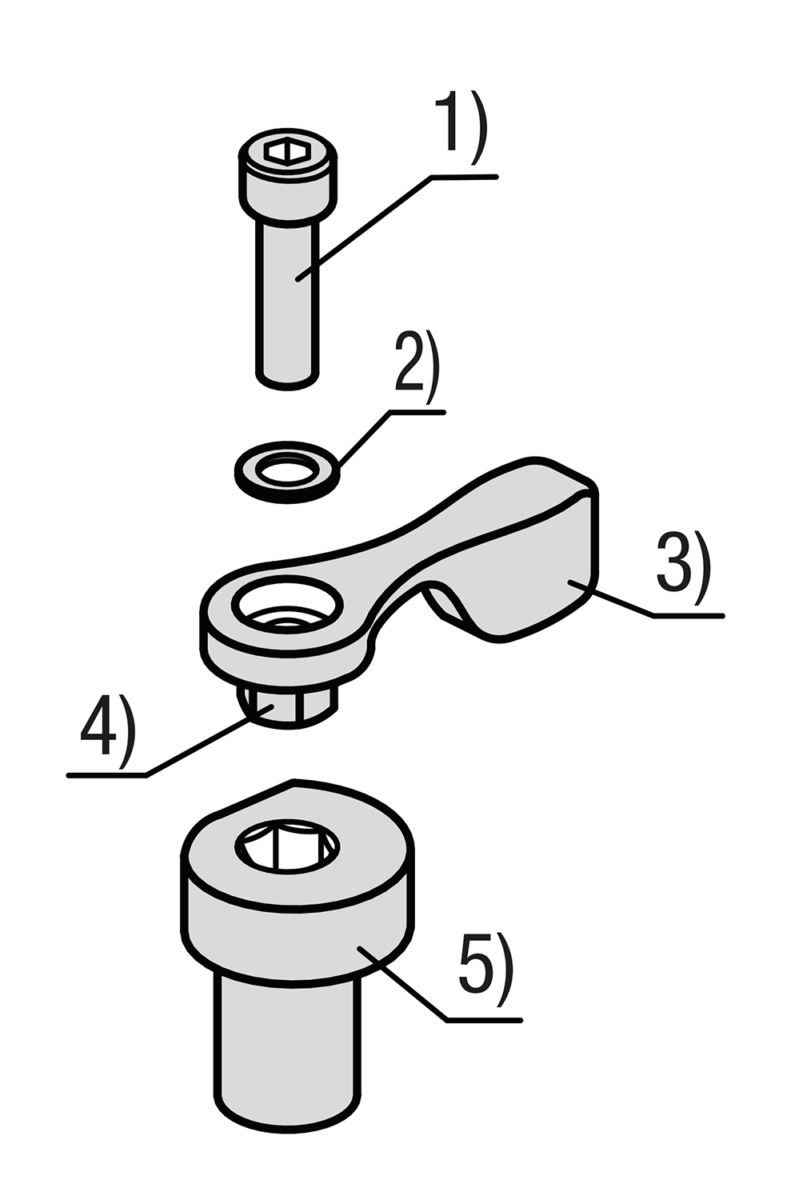

Drawing reference
(1) Clamping screw
(2) Spring washer
(3) Tension lever
(4) Hex key
(5) Cam clamp
(6) Clamping plate
(2) Spring washer
(3) Tension lever
(4) Hex key
(5) Cam clamp
(6) Clamping plate
Accessory
Clamping plate 04431-15.
