Description

Material
Steel.
Version
Case-hardened, black oxidized and ground.
Note

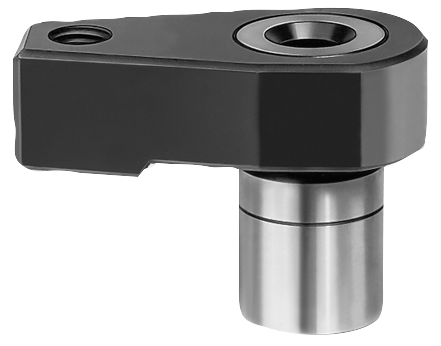

Precision hook clamps are used as conventional clamping elements in fixtures.

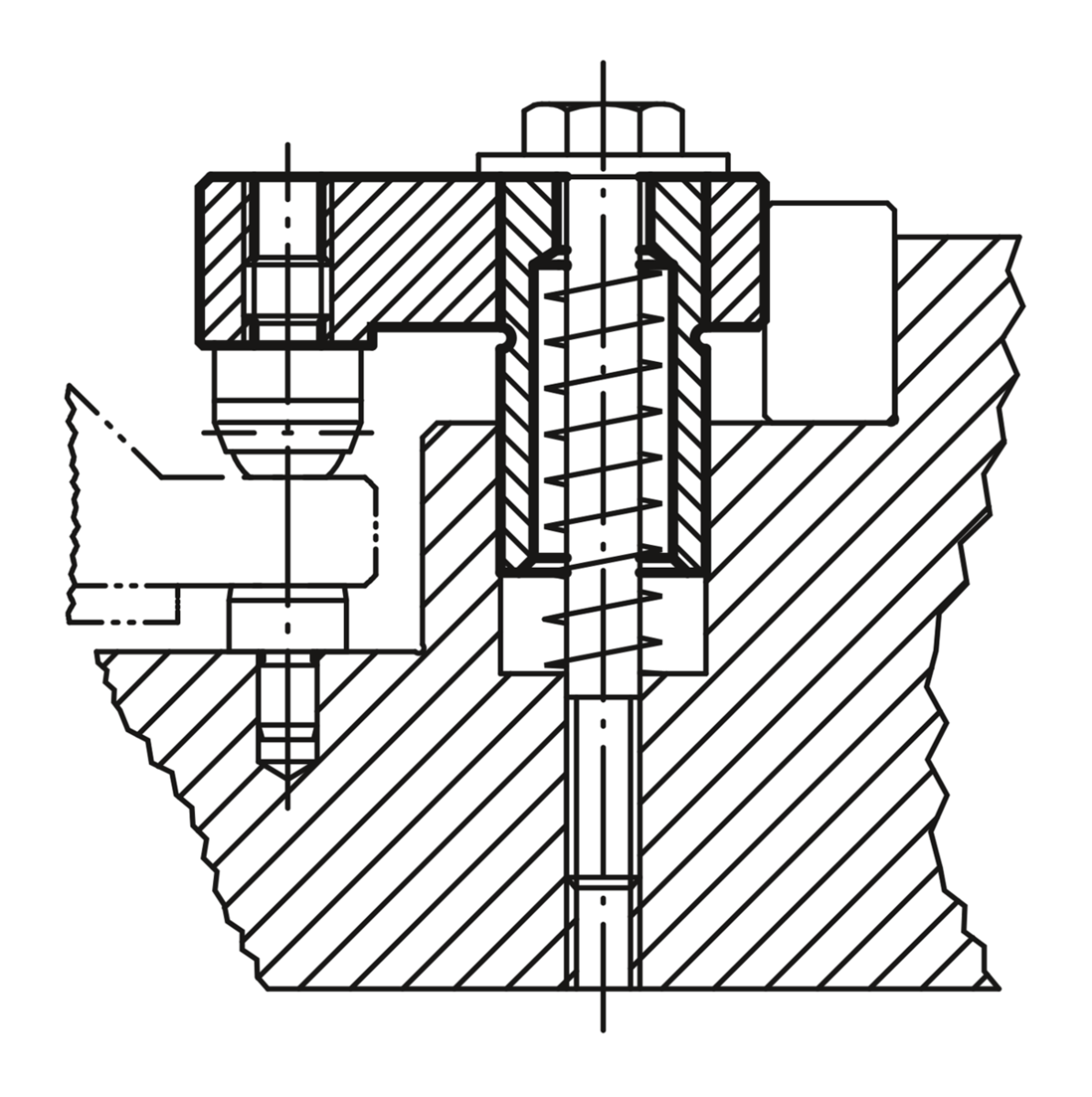

A reamed hole is drilled into the fixture base. The hole depth depends on the required clamping height. A support is placed under the rear rounded hook part (radius 22) to take the counterforce, this can be flat, semicircular or prismatic. A DIN 933 hex. head screw tightens the clamp.
