Steel.
Housing thermoplastic.
Ball knob thermoset PF 31.
Accessories steel.

Black oxide finish.
Housing black.
Ball knob red.
Accessories black oxide finish.

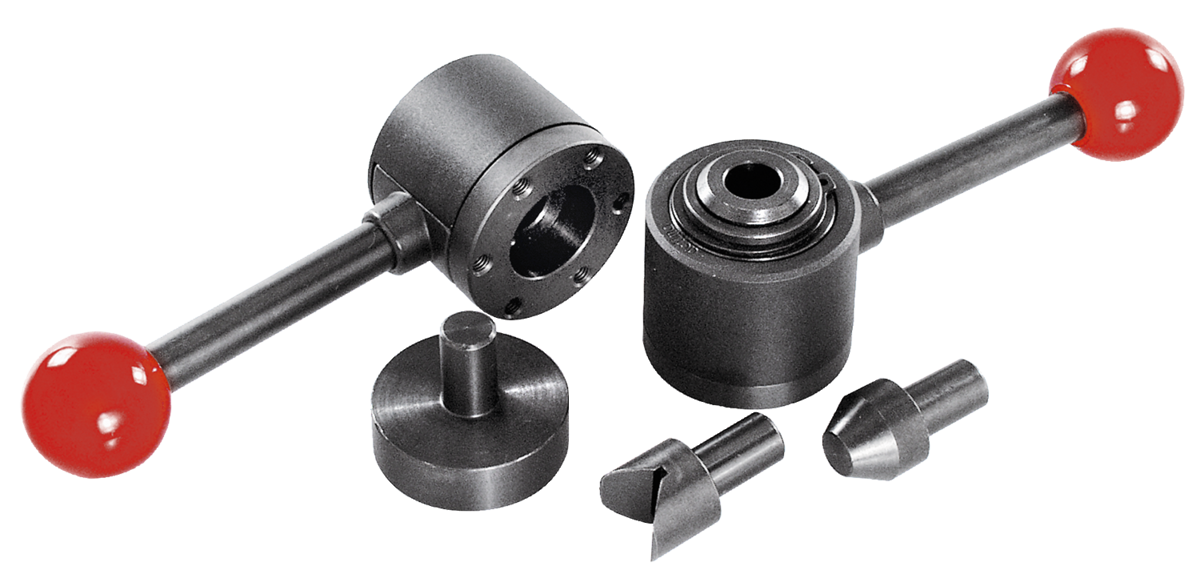

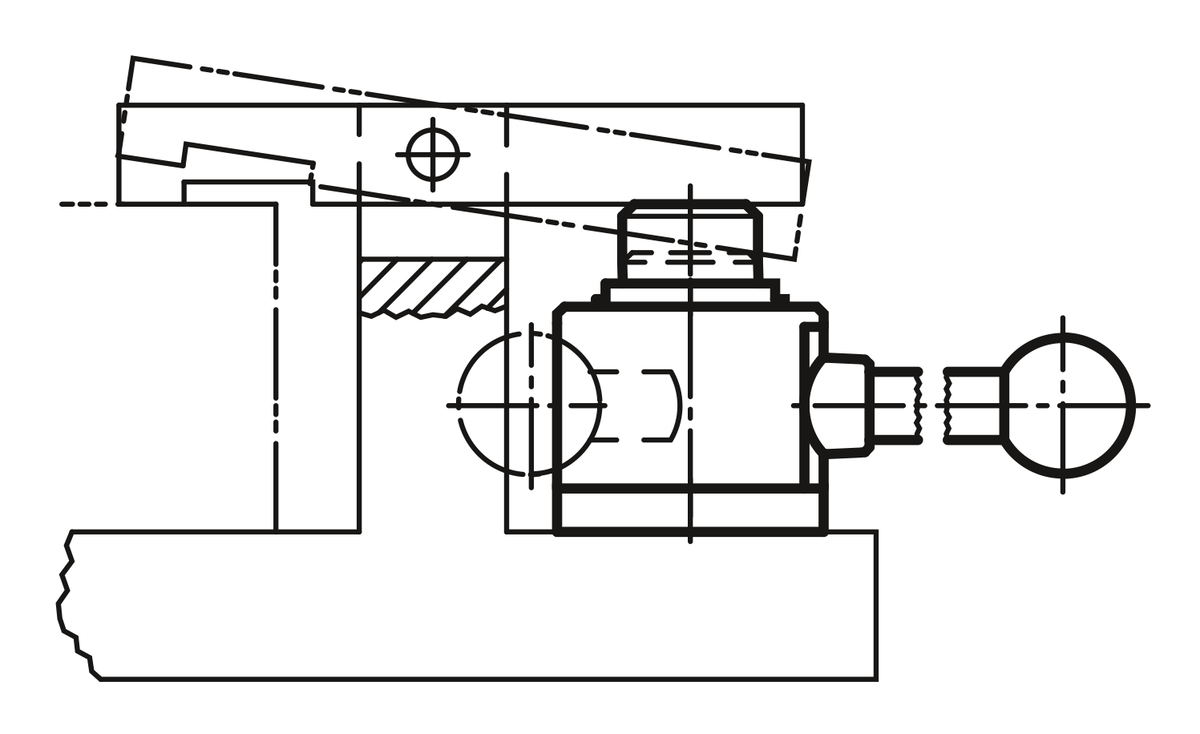

The travel path is 10 mm. Self-locking occurs in any position within only 2 mm of clamp travel, so workpieces with tolerances of up to 1.5 mm can be safely clamped. The Actima clamping device can be mounted in any horizontal or vertical position.
Standard parts enable further applications and are available as optional accessories.
All parts of the cam system subject to heavy loads are case-hardened (thrust body and accessories only if specified).
The maximum permissible clamping force is approximately 4905 N.
