{"product":{"productId":"agid.3094","price":277.89,"name":"Side clamps, flat jaws"},"currency":"USD"}
- Mountable directly on machine tables
- With positive down force
- Clamping jaw case-hardened
- Manual actuation
Description
Material
Steel.
Version
Case-hardened, black oxidized and ground.
Note

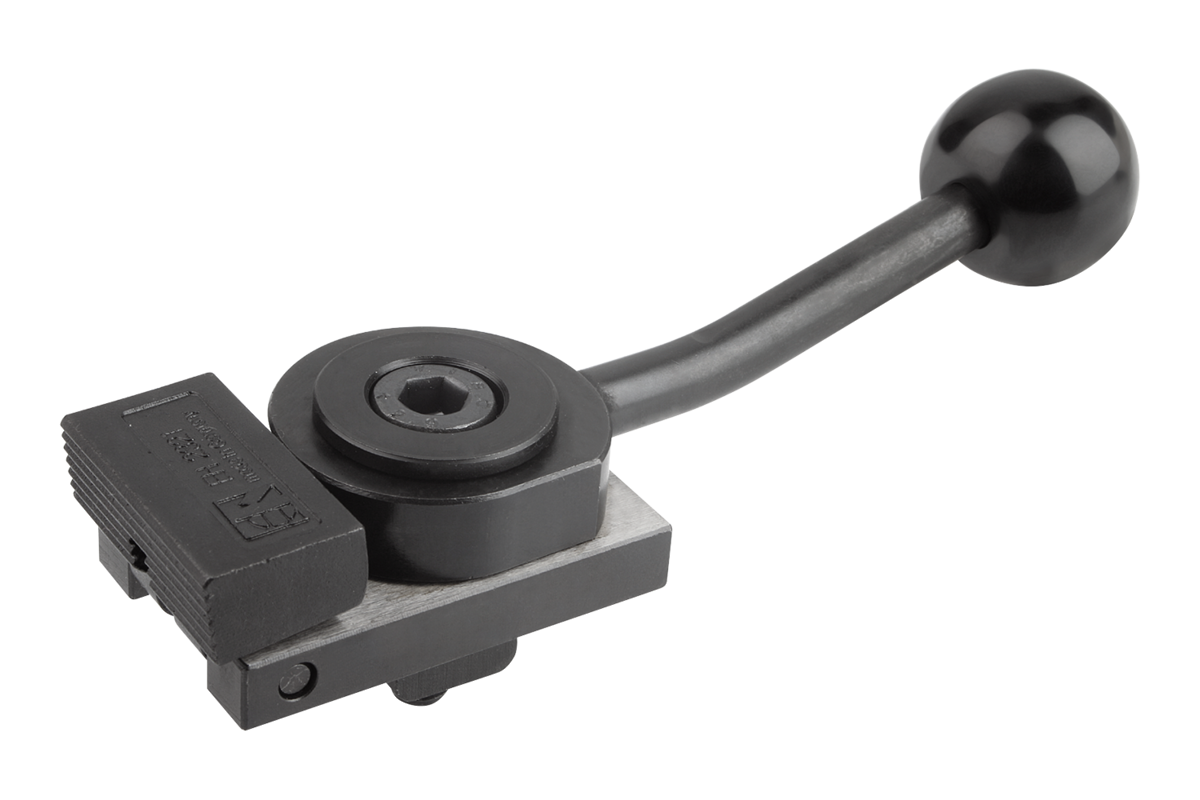

This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force. The low-profile design allows workpieces to be machined over the entire top surface without the need to move the the clamp. A spring withdraws the jaw when opened.
The clamp can be positioned parallel to the T-slot by mounting on the seating block 02395.
The clamp can be positioned parallel to the T-slot by mounting on the seating block 02395.
