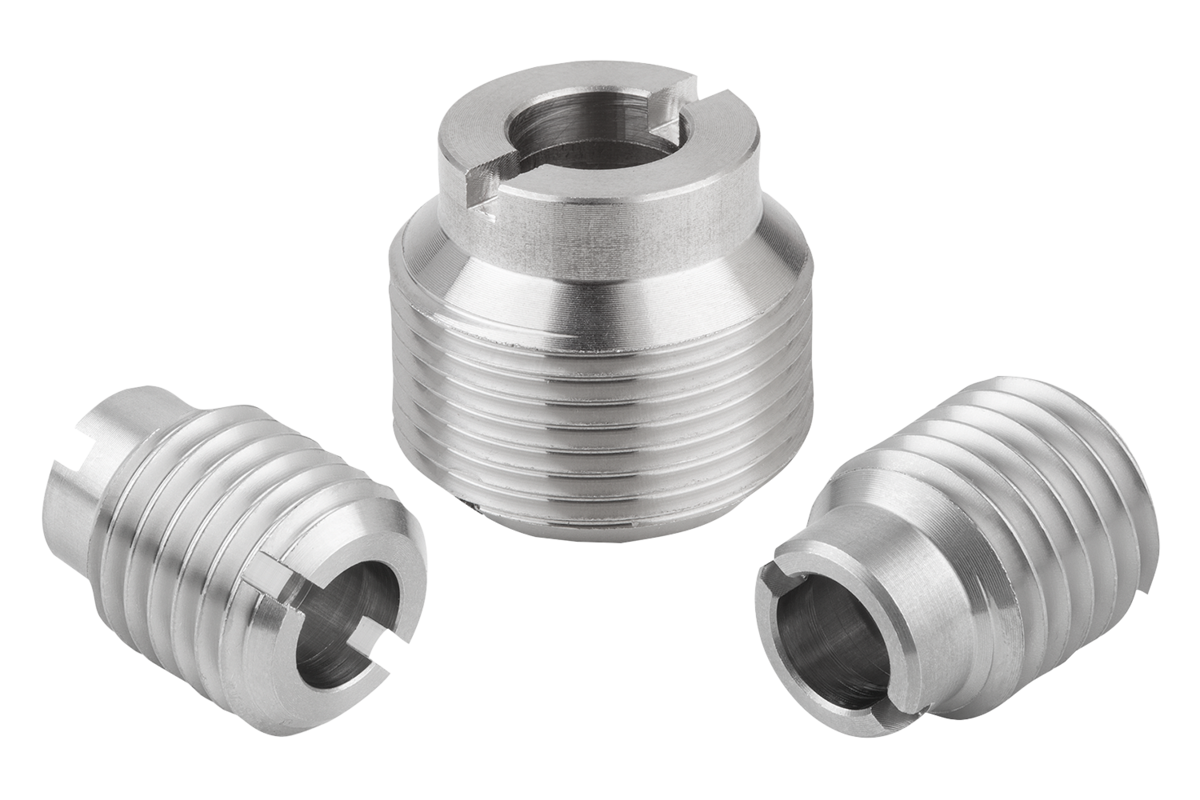

{"product":{"productId":"agid.21803","price":11.88,"name":"Locating bushings stainless steel for ball lock pins"},"currency":"USD"}
Material
Stainless steel 1.4305.
Version
Bright.
Show more
Show less
Description
Material
Stainless steel 1.4305.
Version
Bright.
Note

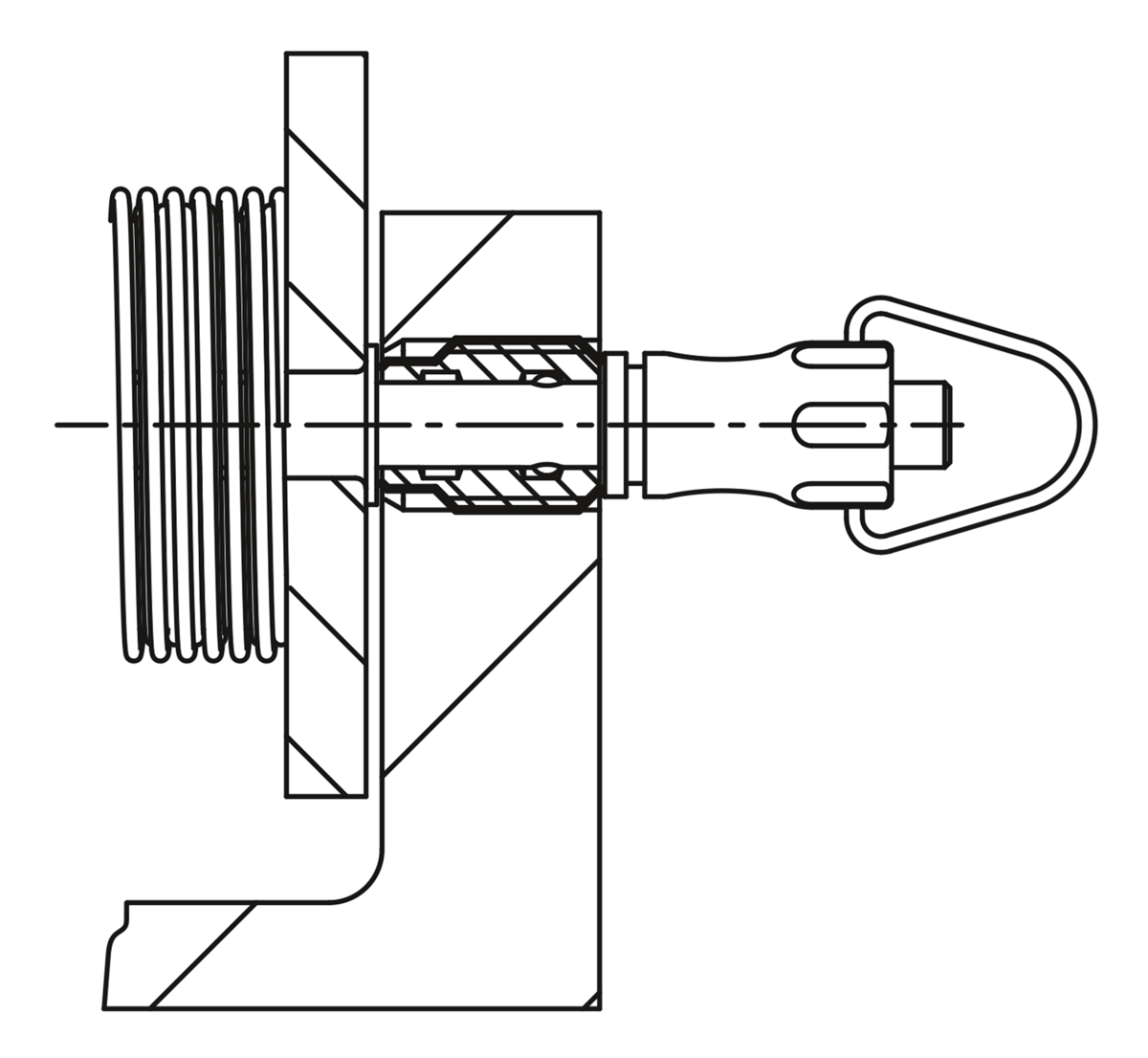

The locating bushings are ideal for easy and quick positioning of ball lock pins with head-end lock.
Advantages
The adapter bushing can be used from both sides.
Additional centering of the adapter bushing is provided by the centering collar (D3).
Additional centering of the adapter bushing is provided by the centering collar (D3).

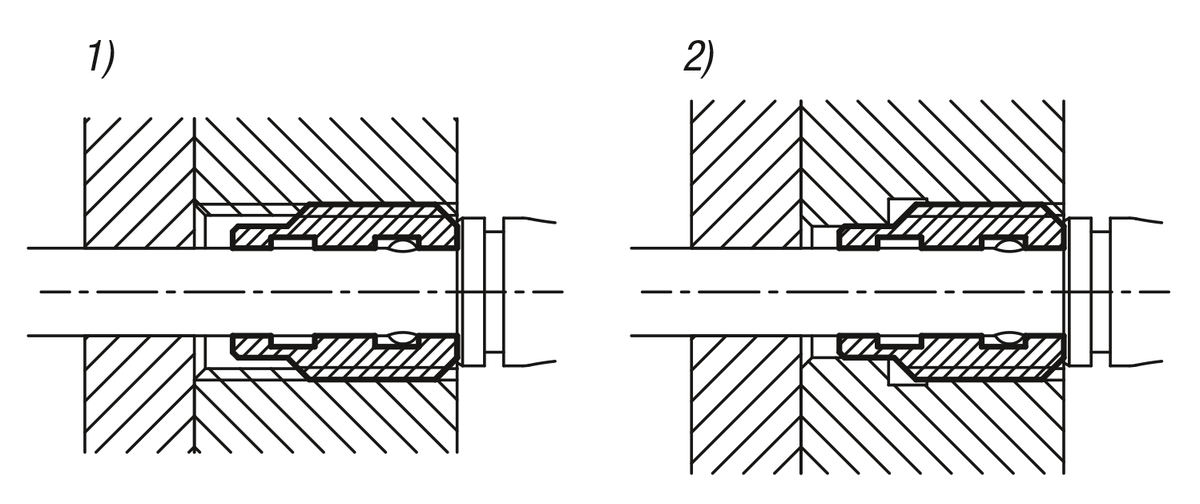

Drawing reference
1) without centering
2) with centering
2) with centering
