Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.

Grip 1.4308
Threaded sleeve and indexing pin 1.4305
Spring 1.4310
Grip cap thermoplastic PA.

Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.

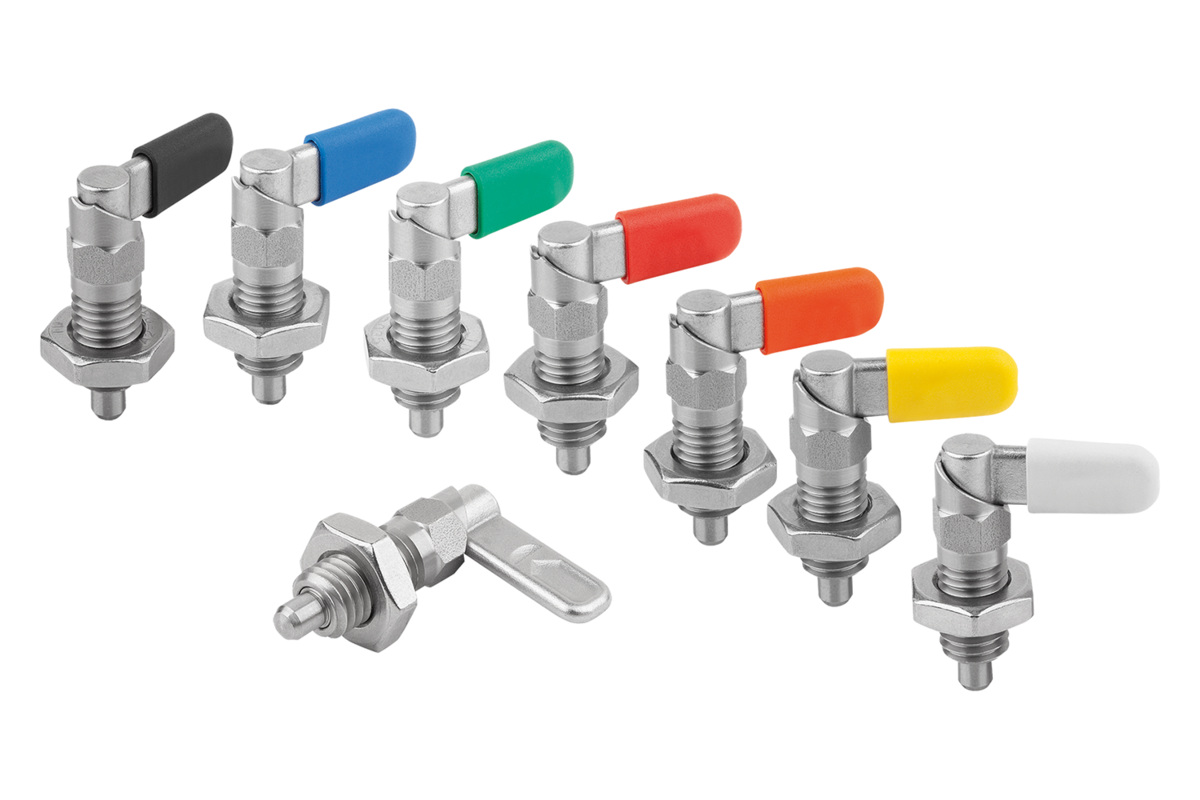

Grip cap in various colors:
-black gray RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light gray RAL 7035.

Turning the grip through 180° retracts the pin.
Optionally available with colored plastic grip caps.
Sleeves with a hexagon serve as assembly aids.

Special versions.

Style A: without grip cap or nut.
Style B: without grip cap, with nut.
Style C: with grip cap, without nut.
Style D: with grip cap and nut.

Mounting bracket 03099.
Positioning bushes 03099-50, 03099-60, 03099-61.
