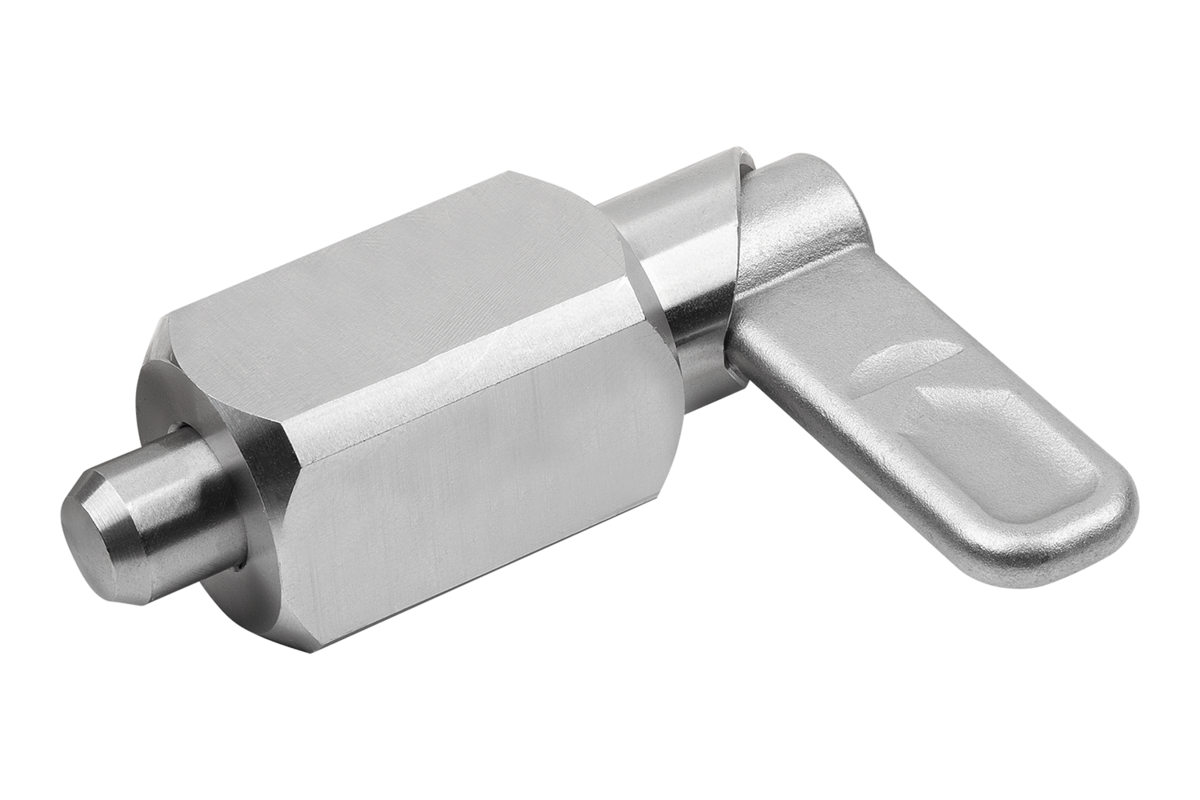

{"product":{"productId":"agid.34674","price":29.19,"name":"Cam-action indexing plungers, stainless steel with square sleeve, Fostylerm G, without grip cap"},"currency":"USD"}
- Turning the grip through 180° retracts the indexing pin.
- Optionally available with colored plastic grip caps
- Square sleeve for welding
Description
Product description
Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material
Grip 1.4308.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.
Version
Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.
Indexing pin ground and left bright.
Spring bright.
Note
The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.
Advantages
Turning the grip through 180° retracts the pin.
Optionally available with colored plastic grip caps.
Square sleeve for welding.
Optionally available with colored plastic grip caps.
Square sleeve for welding.
On request
Special versions.
Accessory
Positioning bushings 03099-50, 03099-60, 03099-61.
