Material
Steel grade 5.8.
Version
Black oxidized.
Pin hardened and ground.
Pin hardened and ground.
Show more
Show less

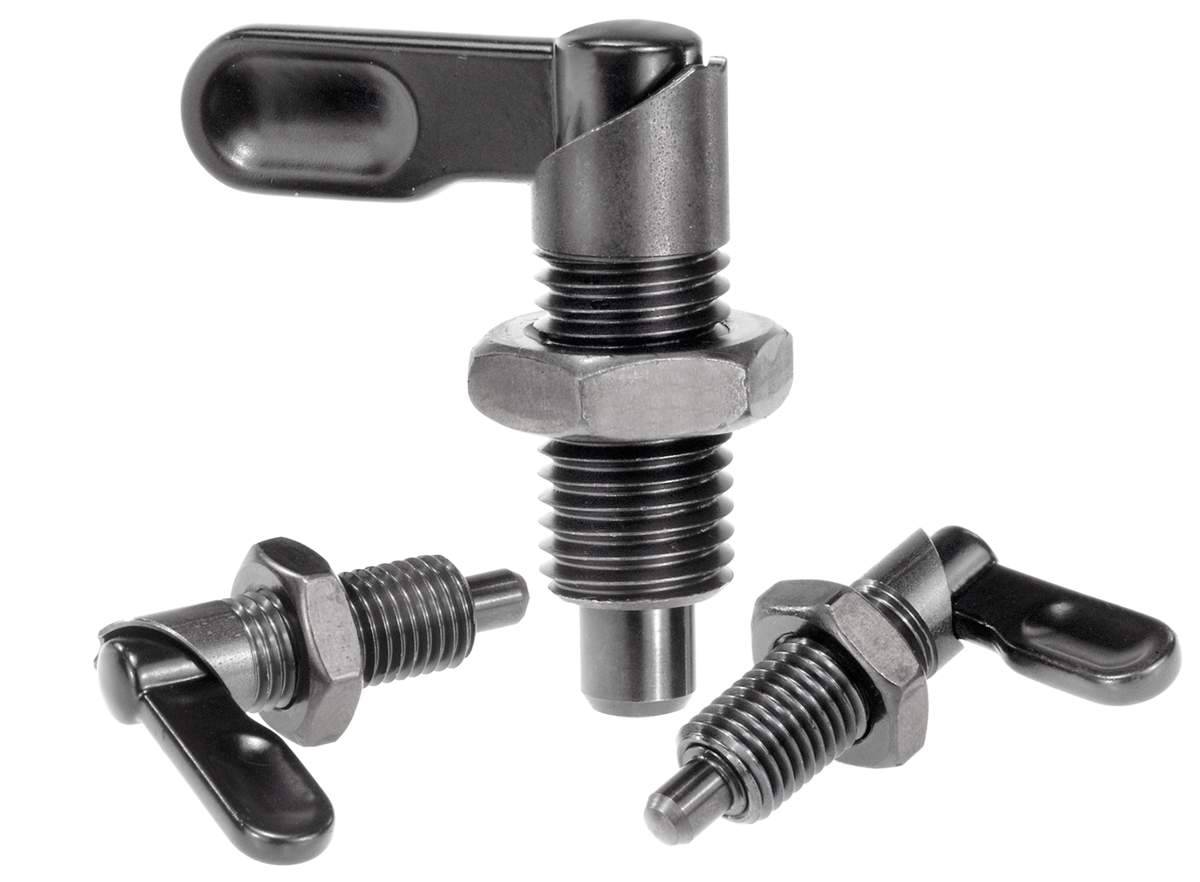

Indexing plungers with grip, style A and C
from
$14.80
plus sales tax
plus shipping costs
Indexing plungers with grip, style B and D
from
$14.96
plus sales tax
plus shipping costs
Description
Material
Steel grade 5.8.
Version
Black oxidized.
Pin hardened and ground.
Pin hardened and ground.
Note
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin and a notch ensures that the handle remains in this position.
Drawing reference
Style A: grip uncoated without nut
Style C: grip powder-coated without nut
Style B: grip uncoated with nut
Style D: grip powder-coated with nut
Style C: grip powder-coated without nut
Style B: grip uncoated with nut
Style D: grip powder-coated with nut
