{"product":{"productId":"agid.20097","price":50.24,"name":"centering clamp round with socket head screw, style B"},"currency":"USD"}
- For centering and clamping
- With positive down force
- For clamping low-profile workpieces
- Specifically for small components
Description
Material
Carbon steel.
Version
Hardened (33–39 HRC) and black oxidized.
Note

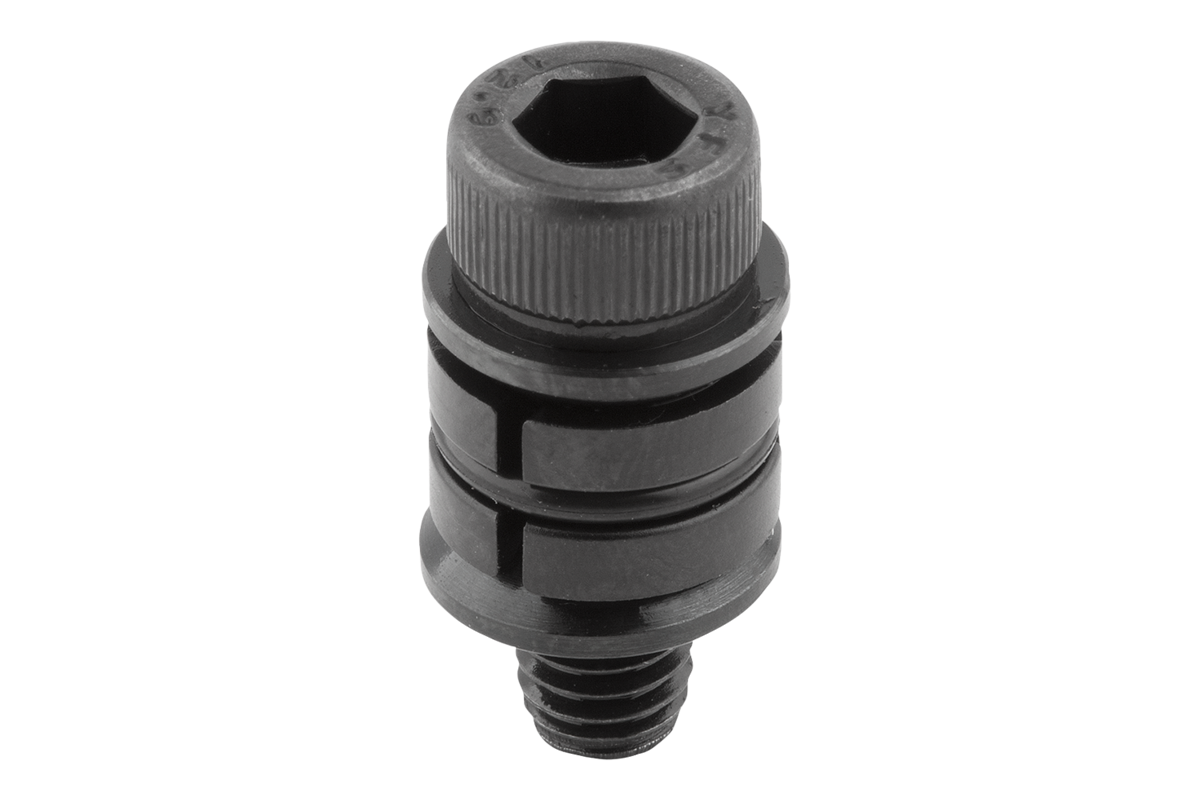

The centering clamp enables a workpiece to be centerd and clamped in the bore.
The wedges generate higher clamping forces.
centering clamp with pull-down effect.
The wedges generate higher clamping forces.
centering clamp with pull-down effect.
Drawing reference
Dimension H refers to the height at ≥ D.
1) O-ring
1) O-ring
