Material
Hammer head carbon steel.
Shaft, stop and guide bodys tool steel.
Shaft, stop and guide bodys tool steel.
Version
Slide hammer tempered and chromed.
Shaft, stop and guide body hardened and chromed.
Shaft, stop and guide body hardened and chromed.
Show more
Show less
Description
Material
Hammer head carbon steel.
Shaft, stop and guide bodys tool steel.
Shaft, stop and guide bodys tool steel.
Version
Slide hammer tempered and chromed.
Shaft, stop and guide body hardened and chromed.
Shaft, stop and guide body hardened and chromed.
Note

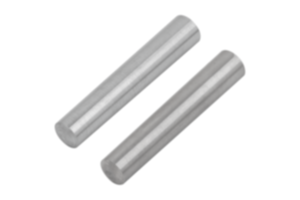

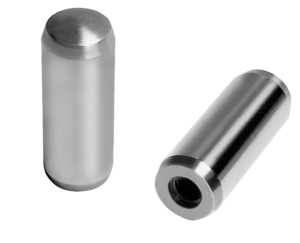

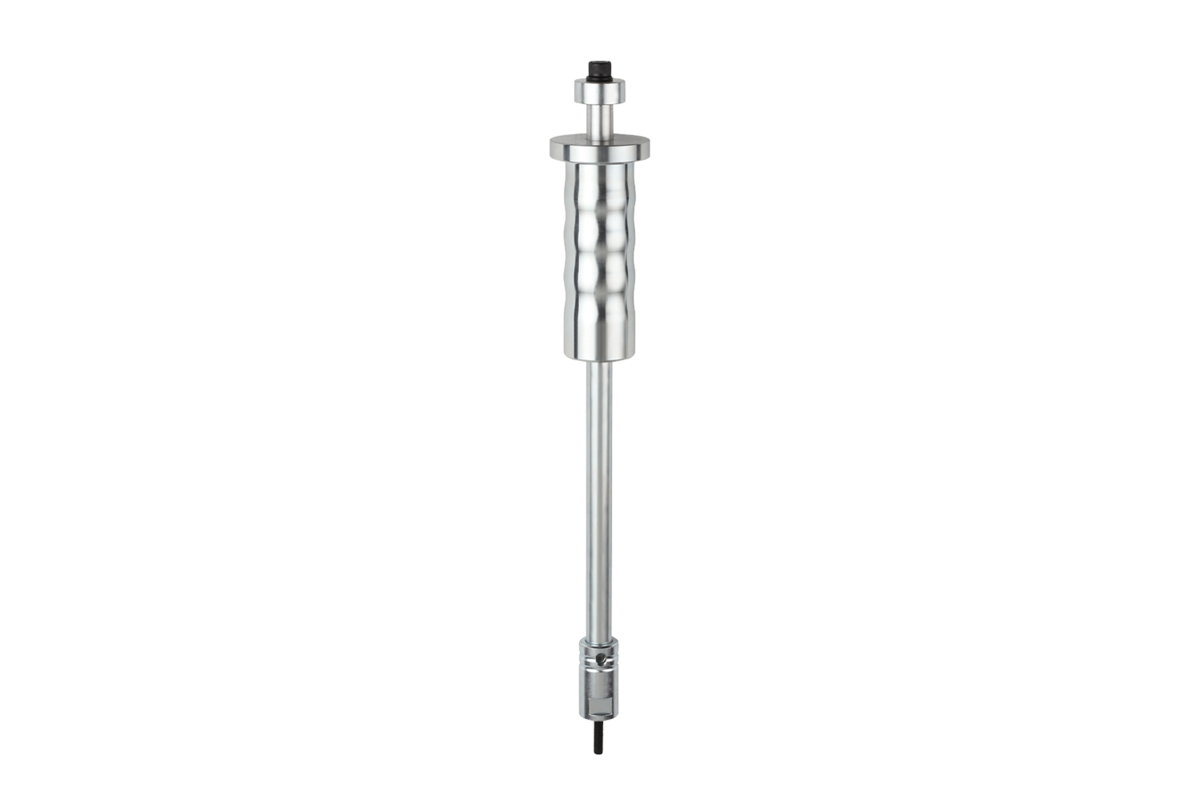

These extractors are used to remove locating pins and centering pins (03105, 03106, 03107, 03108, 03325) with M3 - M8 tapped holes.
Drawing reference
1) stop
2) slide hammer
3) shaft
4) cross pin
5) lock screw
6) guide body
7) cap screw
8) 1 set guide bodys
2) slide hammer
3) shaft
4) cross pin
5) lock screw
6) guide body
7) cap screw
8) 1 set guide bodys
