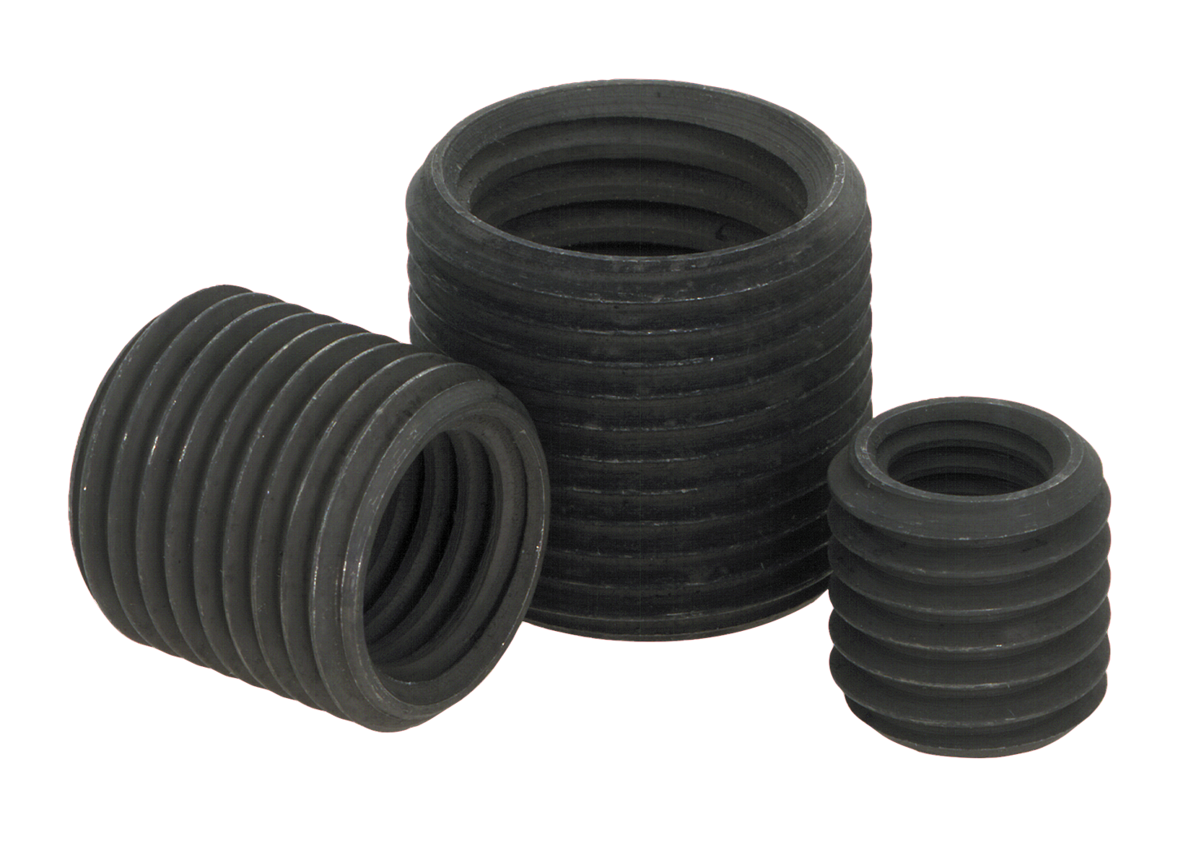

{"product":{"productId":"agid.15046","price":3.81,"name":"Threaded bushings for grid systems"},"currency":"USD"}
Material
Carbon steel.
Version
Tempered to 1100-1300 N/mm².
Show more
Show less
Description
Material
Carbon steel.
Version
Tempered to 1100-1300 N/mm².
Note

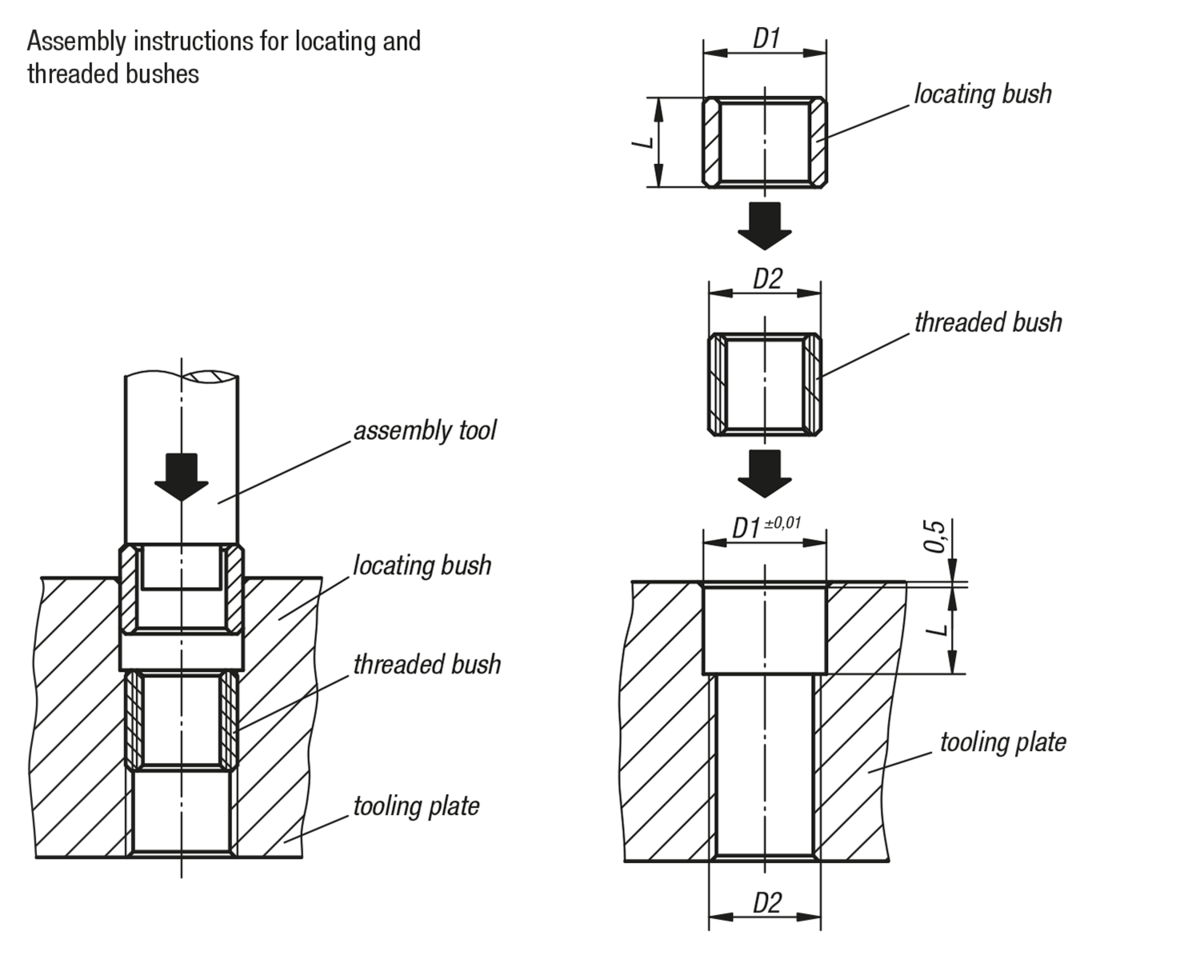

Assembly instructions for changing threaded bushinging.
Inserting the locating and threaded bushinging
1. Remove grease from the locating and threaded bushinging.
2. Apply adhesive (Loctite 638) in the hole.
3. Apply adhesive (Loctite 638) on the threaded bushinging and screw in.
4. Apply adhesive (Loctite 638) to the locating bushinging and insert it. If the locating bushinging cannot be inserted by hand, please use an assembly tool as shown application example:.
5. Remove any adhesive pressed out by insertion of the locating and threaded bushinging before it hardens.
Inserting the locating and threaded bushinging
1. Remove grease from the locating and threaded bushinging.
2. Apply adhesive (Loctite 638) in the hole.
3. Apply adhesive (Loctite 638) on the threaded bushinging and screw in.
4. Apply adhesive (Loctite 638) to the locating bushinging and insert it. If the locating bushinging cannot be inserted by hand, please use an assembly tool as shown application example:.
5. Remove any adhesive pressed out by insertion of the locating and threaded bushinging before it hardens.
