Material
Housing and actuator, PA6 fiberglass reinforced plastic.
Nut die-cast zinc. O-ring NBR, flat seal CR.
Nut die-cast zinc. O-ring NBR, flat seal CR.
Version
Housing and actuator black.
Nut electro zinc-plated.
Nut electro zinc-plated.
Show more
Show less
Description
Material
Housing and actuator, PA6 fiberglass reinforced plastic.
Nut die-cast zinc. O-ring NBR, flat seal CR.
Nut die-cast zinc. O-ring NBR, flat seal CR.
Version
Housing and actuator black.
Nut electro zinc-plated.
Nut electro zinc-plated.
Note

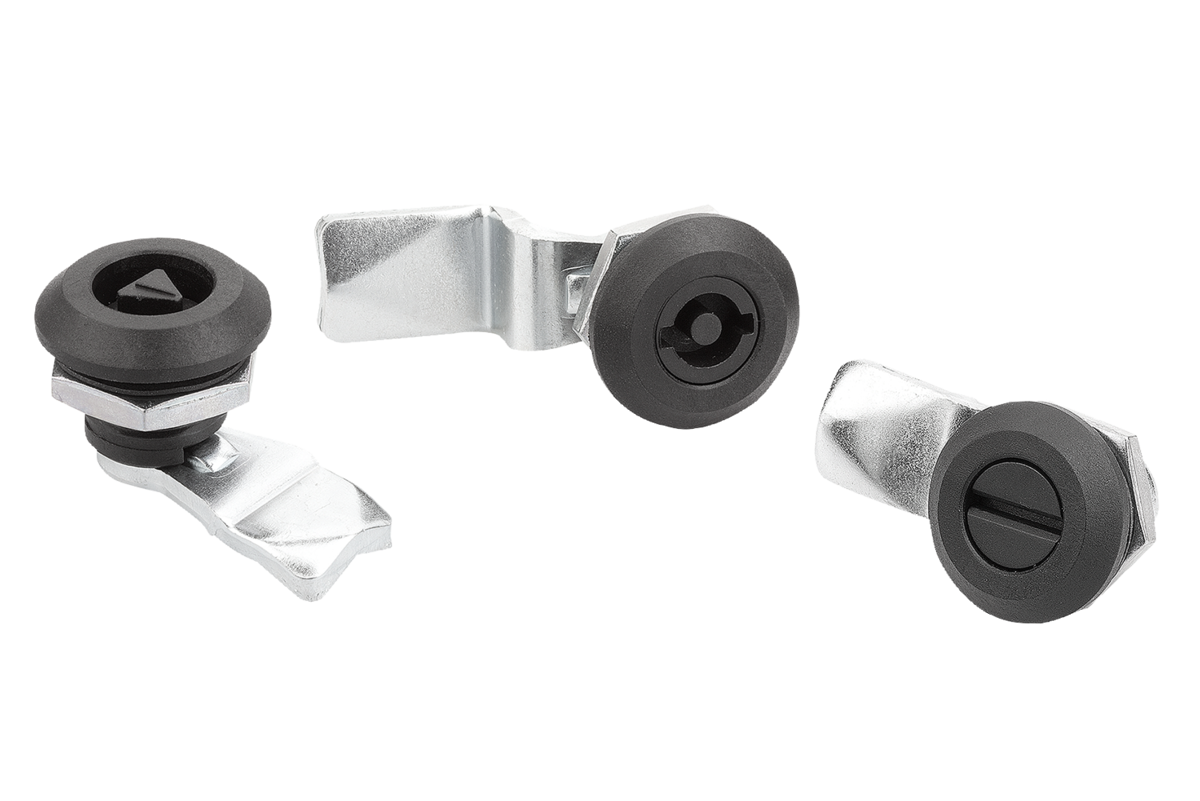

Quarter-turn lock with spring-loaded tongue. Right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled (limitations by a small A-dimension and thick doors).
Water and dust proof as per IP65 through the O-ring and flat seal.
Order required tongue version separately. Every tongue can be combined with every housing.
Water and dust proof as per IP65 through the O-ring and flat seal.
Order required tongue version separately. Every tongue can be combined with every housing.

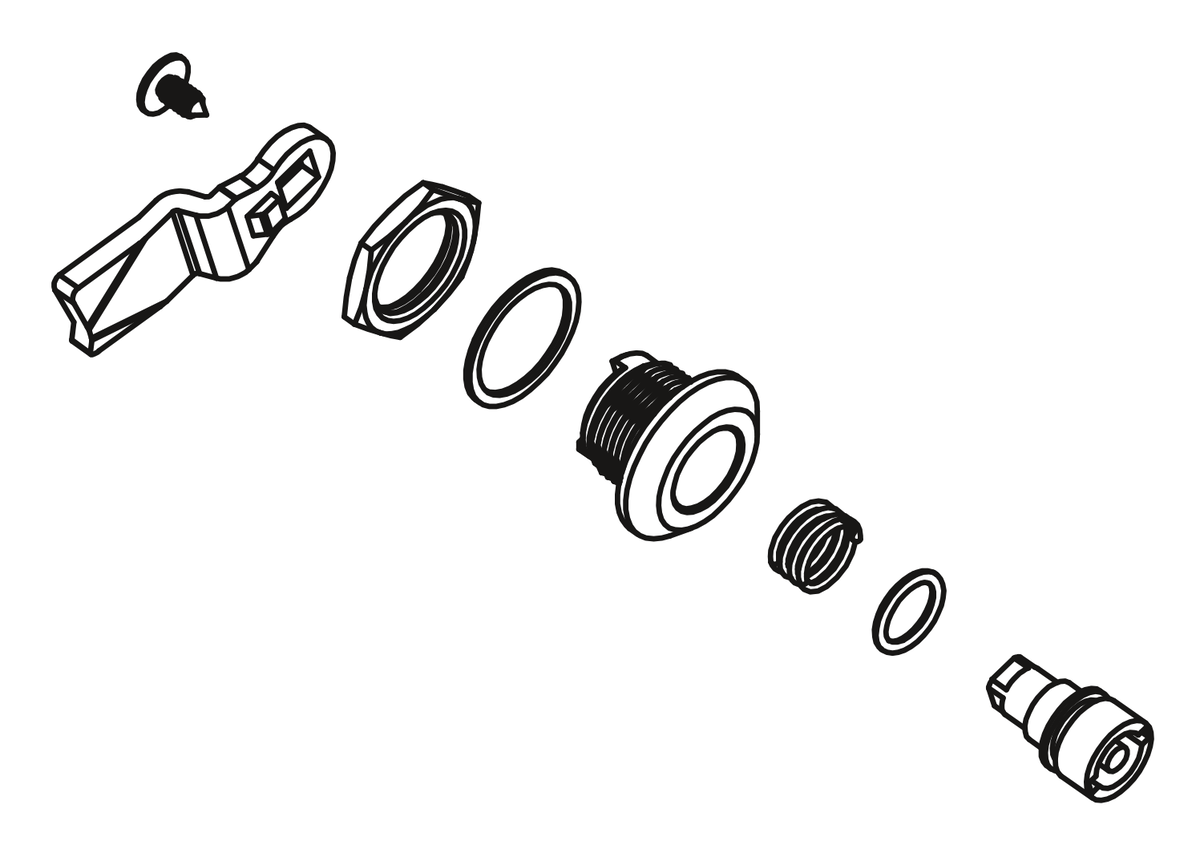

Drawing reference
Actuation:
a) square 7 mm
b) square 8 mm
c) slot
d) double lug 3 mm
e) double lug 5 mm
f) triangle 8 mm
a) square 7 mm
b) square 8 mm
c) slot
d) double lug 3 mm
e) double lug 5 mm
f) triangle 8 mm
Accessory
Key 05586.
Tongue for steel quarter-turn lock 05569.
Tongue for steel quarter-turn lock 05569.
