Material

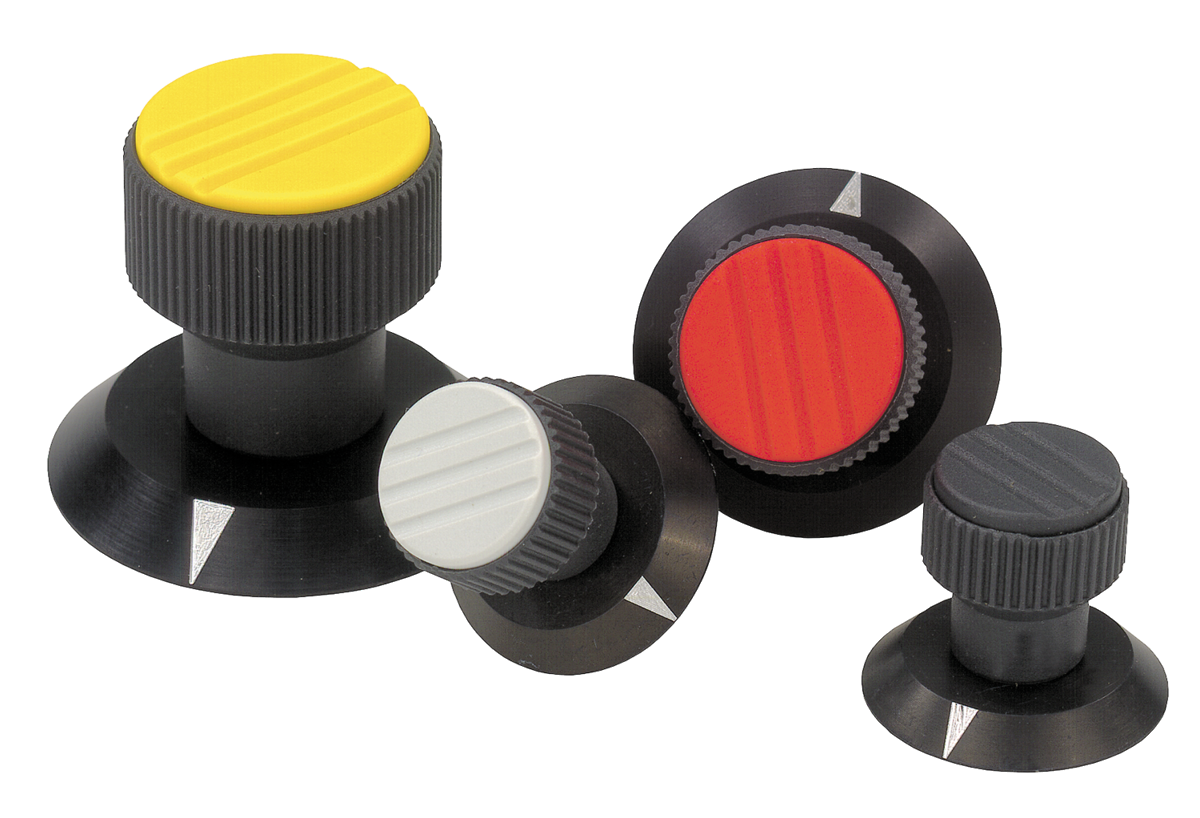

Knurled knob thermoplastic.
Washer aluminum.
Washer aluminum.
Version
aluminum black anodized.
Show more
Show less
Description
Material
Knurled knob thermoplastic.
Washer aluminum.
Washer aluminum.
Version
aluminum black anodized.
Note
The arrow is engraved after anodizing. The set screw secures both the hub and the pressed-in washer. The H7 hole in the hub ensures a good tight fit on the shaft.
Δ Add the desired cap color here. No color code is required for black gray caps.
Δ Add the desired cap color here. No color code is required for black gray caps.
Drawing reference
1) set screw
