Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.
Style C is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

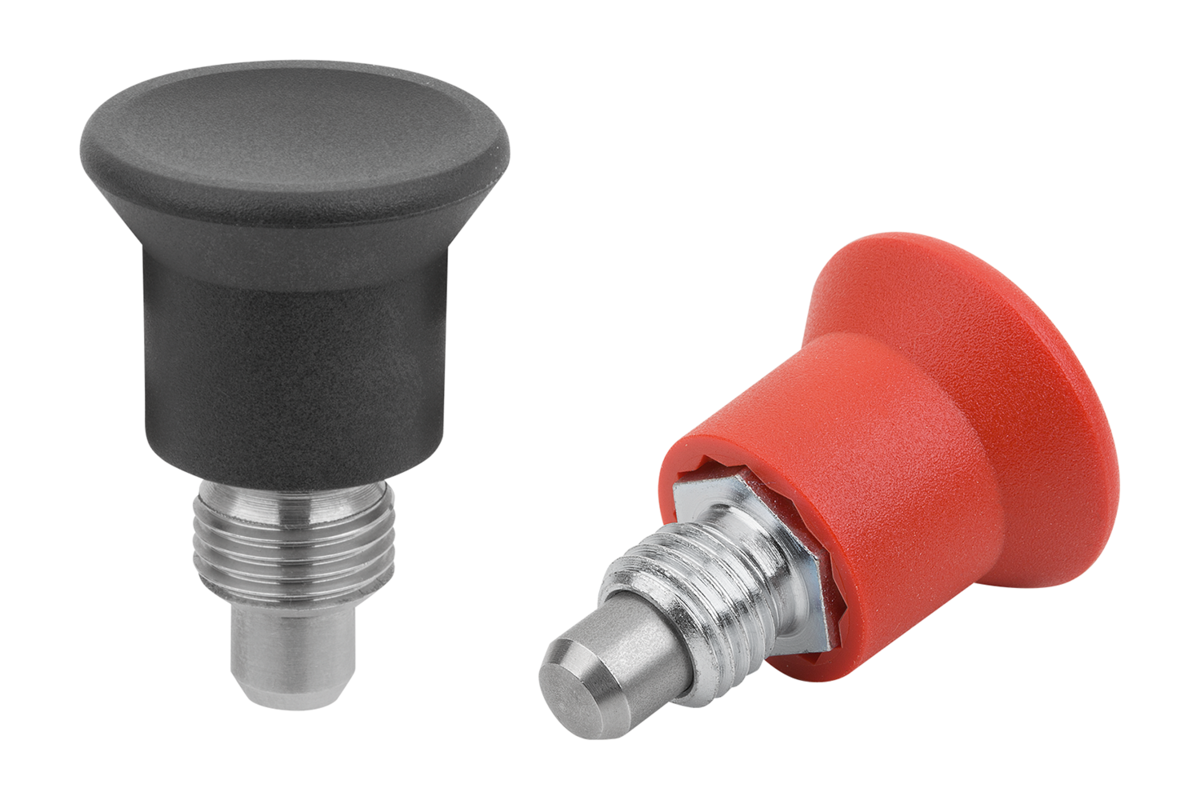

Mini indexing plungers enable a wide range of applications, especially in small installation spaces. They are a space-saving and cost-effective alternative to the familiar standard designs.

Steel version:

Threaded sleeve machining steel.

Indexing pin stainless steel 1.4305.



Stainless steel version:

Threaded sleeve and indexing pin stainless steel 1.4305.



Compression spring stainless steel 1.4568.

Mushroom grip thermoplastic.

Steel version:
Threaded sleeve blue passivated.
Indexing pin bright.

Stainless steel version:
Threaded sleeve and indexing pin bright.

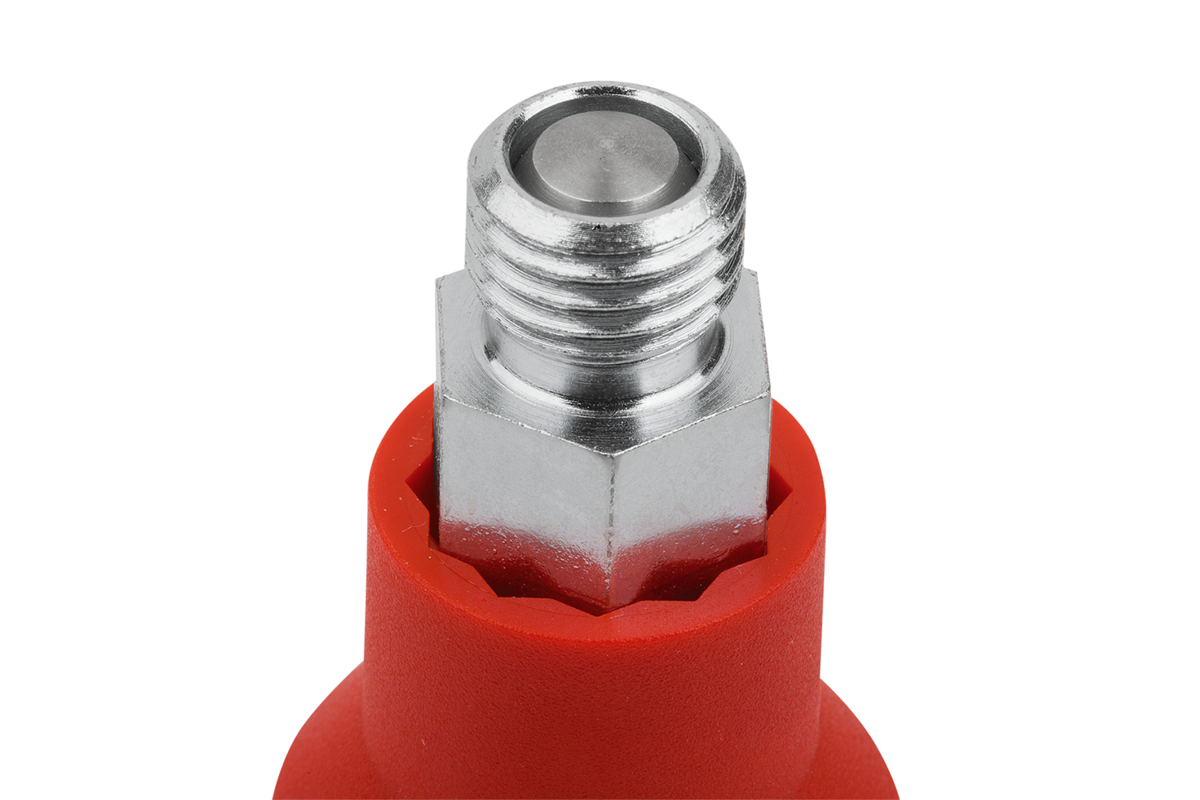

Mushroom grip black-gray RAL 7021 or traffic red RAL 3020.

In style C, the mushroom grip can be rotated by 30° to hold the indexing pin in pulled position.

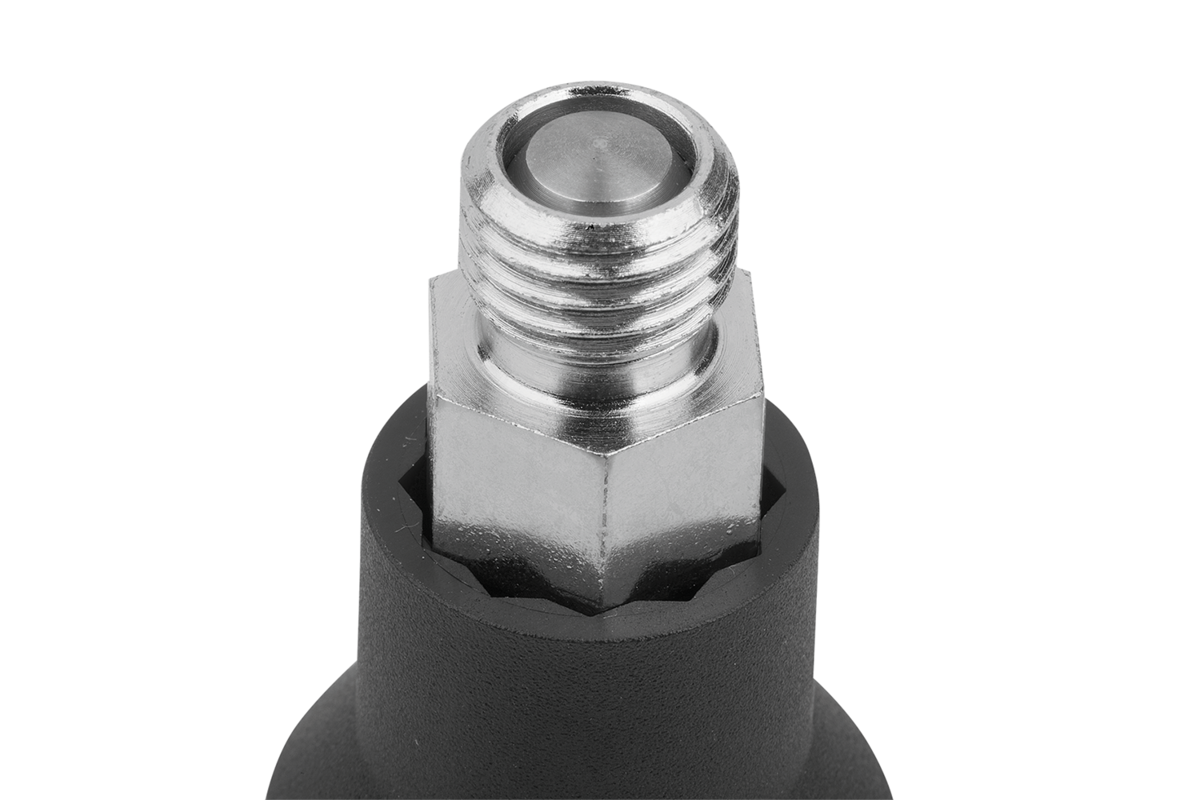

The indexing pin must be pulled out for installation with an open-end spanner.

style A: non-lockout type, without locknut
style C: lockout type, without locknut

Spacer rings 03089.
Hexagon nuts, low profile DIN 439 / ISO 4035, 07212.
Positioning bushinges for indexing plunger 03099-50.
