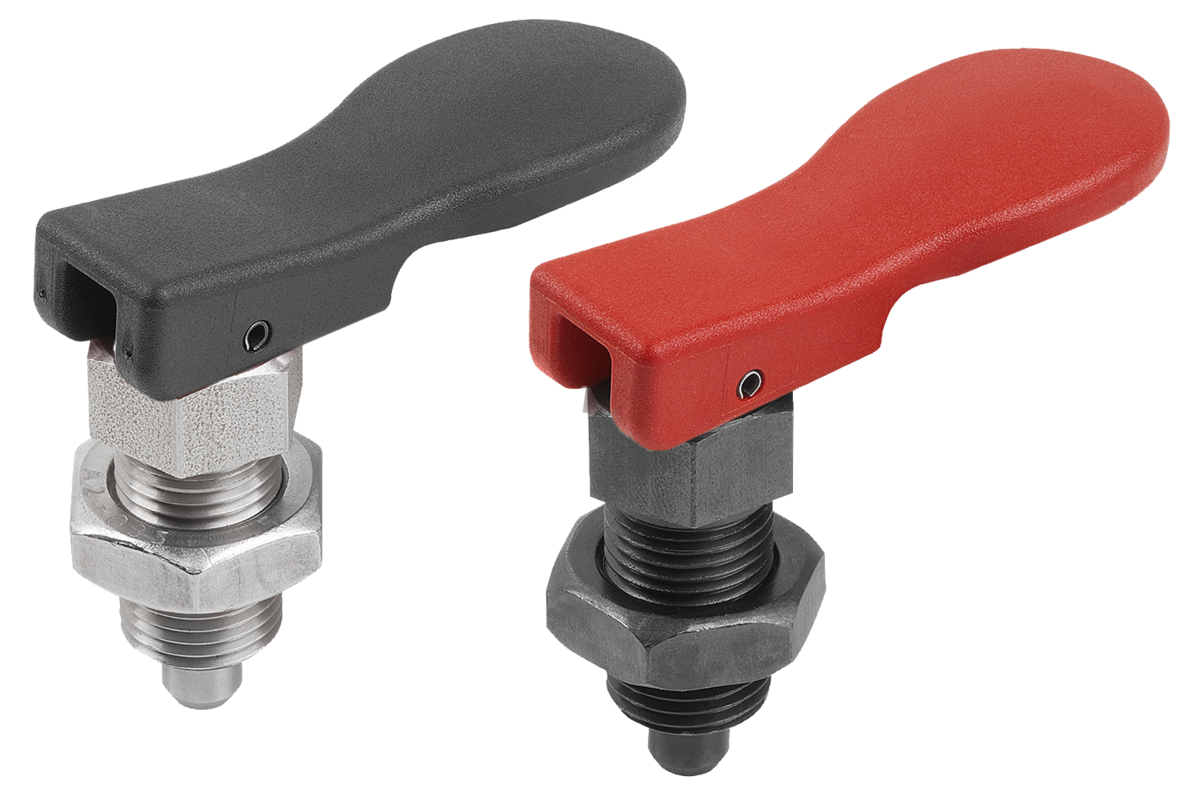

Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead center of the cam.
The ergonomic cam lever enables light handling with low effort.

Steel version:

Grub screw and indexing pin steel.



Stainless steel version:

Threaded body 1.4305(AISI 303 equivalent).

Indexing pin 1.4305(AISI 303 equivalent).

Handle fiberglass reinforced thermoplastic PPA (high temperature resistant).

Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin ground, bright.

Handle black gray RAL7021 or traffic red RAL3020.

Continuous operating temperature acc. to IEC 216 max. 160°C.
Temporary operating temperature max. 250°C.

Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.

Special versions.
