- Grip style with good haptics
- Controlled actuation in pull direction
- Inexpensive version
- High stability
Description
Product description
Indexing plungers are used to prevent changes to the locking position due to lateral forces. Another locking position can be set only after the plunger has been manually released.
Material
Steel version:
Threaded sleeve 1.0715.
Indexing pin hardened:
Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

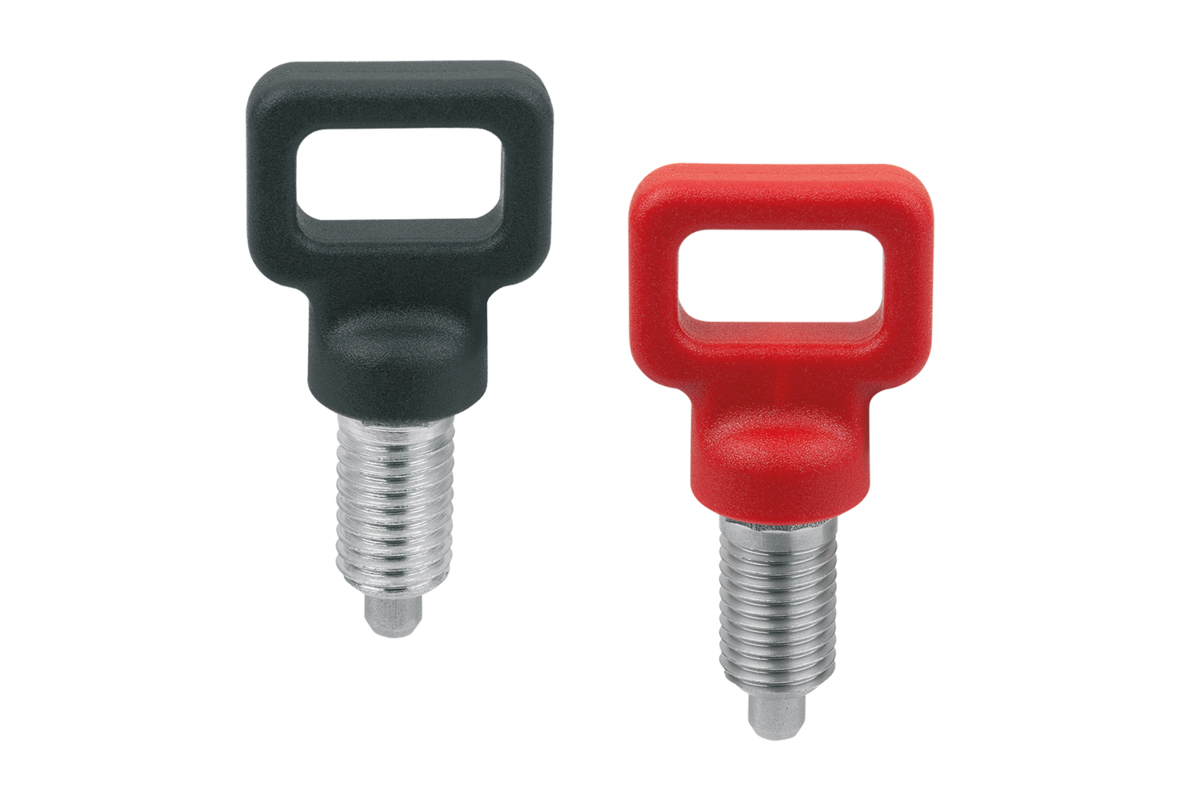

Eyelet grip thermoplastic, black grey RAL 7021 or traffic red RAL 3020.
Threaded sleeve 1.0715.
Indexing pin hardened:
Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Eyelet grip thermoplastic, black grey RAL 7021 or traffic red RAL 3020.
Version
Steel version:
Indexing pin hardened.
Threaded body trivalent blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Indexing pin hardened.
Threaded body trivalent blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note
Pay attention to the max. tightening torque when assembling.
On request
Other travels possible on request.
Drawing reference
style A: non-lockout type, without locknut
style B: non-lockout type, with locknut
style C: lockout type, without locknut
style D: lockout type, with locknut
style B: non-lockout type, with locknut
style C: lockout type, without locknut
style D: lockout type, with locknut
