{"product":{"productId":"agid.30774","price":14.44,"name":"Indexing plungers steel or stainless steel, with plastic eyelet grip, style D"},"currency":"USD"}
- Grip style with good haptics
- Controlled actuation in pull direction
- Inexpensive version
- High stability
Description
Product description

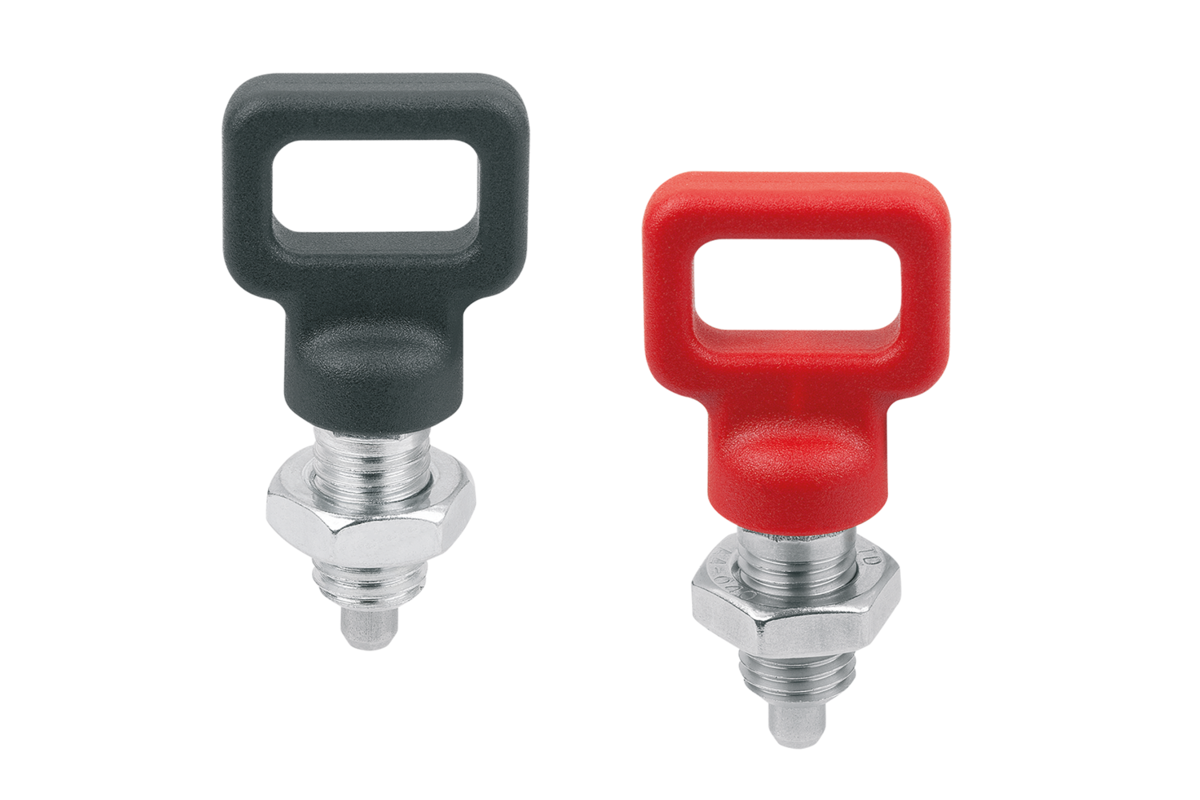

Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.
Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
Material
Steel version:
Threaded sleeve free-cutting steel.
Indexing pin 1.4305.
Stainless steel version:
Threaded sleeve and indexing pin 1.4305.
Eyelet grip thermoplastic.
Version
Steel version:
Threaded sleeve blue passivated.
Indexing pin not hardened, bright.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened, bright.
Eyelet grip black grey RAL 7021 or traffic red RAL 3020.
Threaded sleeve blue passivated.
Indexing pin not hardened, bright.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened, bright.
Eyelet grip black grey RAL 7021 or traffic red RAL 3020.
Note
Pay attention to the max. tightening torque when assembling.
On request
Special versions.
Drawing reference
style A: non-lockout type, without locknut
style B: non-lockout type, with locknut
style C: lockout type, without locknut
style D: lockout type, with locknut
style B: non-lockout type, with locknut
style C: lockout type, without locknut
style D: lockout type, with locknut
Important note on downloading CAD models
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
