Material
Indexing pin steel.
Threaded sleeve steel.
Mushroom grip, dark gray thermoplastic.
Lock mark aluminum.
Threaded sleeve steel.
Mushroom grip, dark gray thermoplastic.
Lock mark aluminum.
Version
Indexing pin steel, hardened, ground and black oxidized.
Threaded body black oxidized.
Lock mark red anodized.
Threaded body black oxidized.
Lock mark red anodized.
Show more
Show less

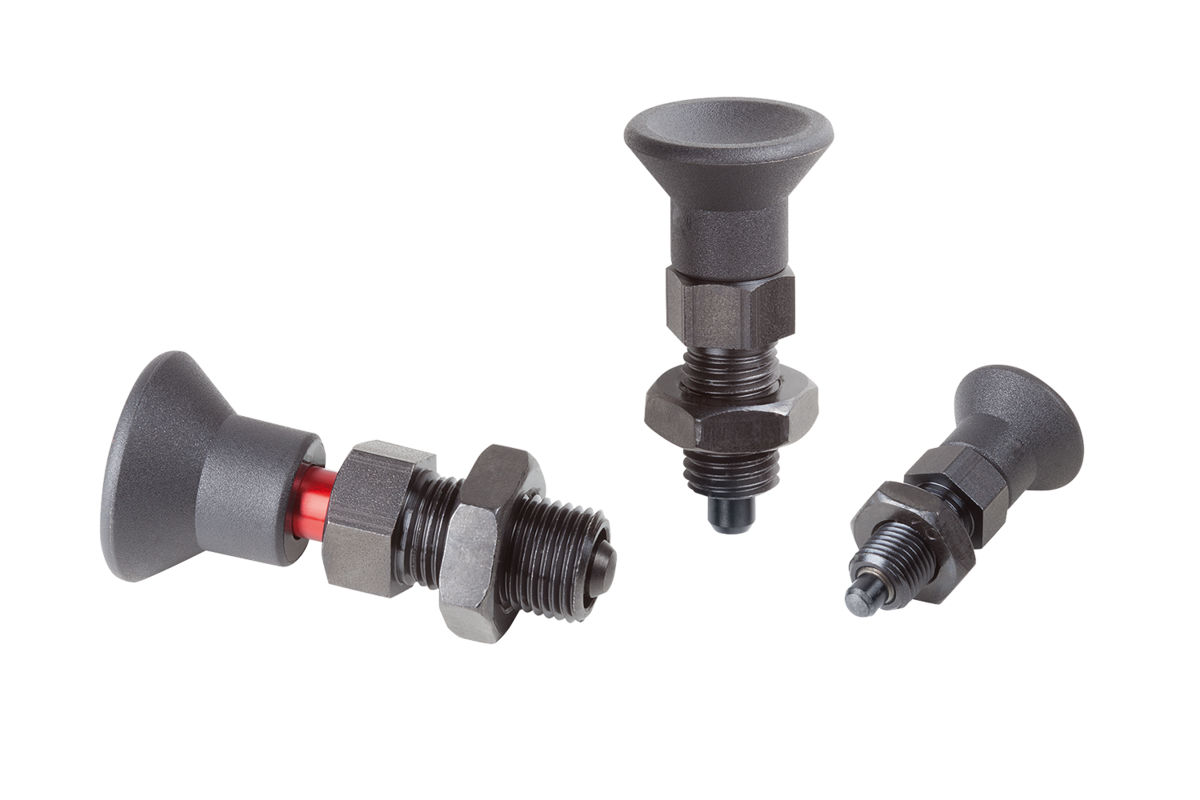

Indexing plungers, steel with plastic mushroom grip and locked mark
from
$14.79
plus sales tax
plus shipping costs
Indexing plungers, steel with plastic mushroom grip, locked mark and locknut
from
$15.11
plus sales tax
plus shipping costs
Description
Material
Indexing pin steel.
Threaded sleeve steel.
Mushroom grip, dark gray thermoplastic.
Lock mark aluminum.
Threaded sleeve steel.
Mushroom grip, dark gray thermoplastic.
Lock mark aluminum.
Version
Indexing pin steel, hardened, ground and black oxidized.
Threaded body black oxidized.
Lock mark red anodized.
Threaded body black oxidized.
Lock mark red anodized.
Note
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the plunger has been manually disengaged.
When the lock mark is visible the plunger is either completely disengaged or only partly in the index position.
When the lock mark is visible the plunger is either completely disengaged or only partly in the index position.
On request
Special versions.
Drawing reference
style A: non-lockout type, without locknut
style B: non-lockout type, with locknut
1) marking ring
style B: non-lockout type, with locknut
1) marking ring
Accessory
Spacer rings 03089
